Description
LED lamps
LED technology offers demonstrable advantages in terms of efficiency (lower energy consumption) and visibility. An LED insect trap earns itself back over time in energy costs. Therefore it can be very interesting to invest in an insect trap with LED technology!
If you want to know how much energy you can save, use our calculation tool (tool will be updated in early 2023).
i-trap 50 LED in brief
- Effective and proven design.
- Energy-saving UV-A LED technology results in annual savings of 90kW per unit.
- Lifespan of 3 years (25,000 hours) of the UV-A LED lamp
- Environmentally friendly: No banned chemicals are used in the product design.
- RoHS / REACH / ISO and CB certified.
- Quick and easy maintenance of the device.
- Effective adhesive plate generates efficient capture and fast analysis.
- The high-quality housing offers a lifespan of at least 5 years.
- Quick installation and service, 2-year warranty.
ASTRON the new standard!
For some years now, there have been special LEDs on the market that have the ability to generate ultraviolet light; UV-A LEDs. These special LEDs are at the heart of a new generation of UV-A lamps: the ASTRON UV LED 15 Watt. The fact that the name of this new LED bulb mentions 15 Watts lies in the fact that this bulb replaces a traditional 15 Watt bulb, but only needs 11 Watts to deliver the same UV-A performance.
ASTRON is an emerging name in LED technology. Astron distinguishes itself by the low energy costs and the high light output of their lamps!
An introduction to glueboard technology.
High voltage grid | Glueboard | |
Reliable | Yes | Yes |
Catching away small insect species | Not possible (flies through the bars of the grid) | No problem |
Disease spread after killing off insect still possible | Yes possible | Not possible |
Chance of greater insect infestation due to capture method | Yes possible (spiders, flies, wasps have access to the dead insects) |
Not possible |
Explosion of the insect possible | Yes | No |
Spread of Insect Hair (Forms a major risk for people with lung disease) | Yes (for that reason these are banned in hospitals in America) | No |
Monitoring and trend analysis | Difficult | Simple |
Odorless | No | Yes |
Sparking, crackling (Fire hazard) |
Yes | No |
Power costs per year | 44-88kW | No cost |
Service friendly | Chance of shock hazard lots of cleaning |
Yes simply replace glueboard |

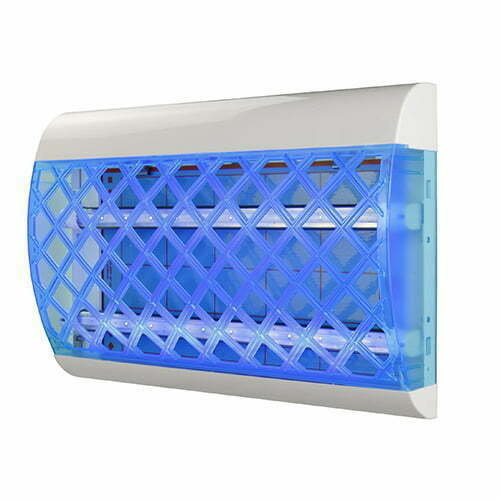

The i-trap 50 LED is an effective and proven design fly trap which brings great quality! The i-trap 50 LED meets the standards set within the HACCP Hygiene Code. Also, thanks to LED technology, this insect trap is energy friendly!
The i-trap 50 LED insect trap is recommended for use in shops, restaurants and dry industrial environments. With the mounting strip, this unit can be easily attached to the wall, making maintenance easy.
Data
Surface coverage | 50 – 80 m² / 538 – 861 ft² |
Light source | 2x 15 Watt ASTRON UV-A LED Lamps |
Type UV lamp | UV LED lamps RoHS certified |
Electrical supply | 100-240 V ~ 50-60 Hz |
Catch medium | Effective glueboard |
Power | 23 W |
Weight | 4 Kg / 8.8 lbs |
Protection class | IP 20 |
Warranty | 2 years “return to base" |
Int. standardization | acc. IEC-335-259 int. standard |
Hygiene standards | HACCP, AIB, BRC, EUREP GAP, GMP, IFS, M&S |
Certificates | CE / EMC / LVD / RoHS / REACH / ISO 9001 compliant |
Lamp life | 25.000 hours(*) |
Dimensions (L x B x H) | 470 x 100 x 325 mm / 18.5 x 3.9 x 12.7 inch |
CE inspected | Yes |
Positioning | Wall mount |
Connection cable | Includes |
Maintenance | No special tools required |
(*) After 25,000 hours, a loss of 30% in efficiency can be expected and replacement of the lamps is necessary. |

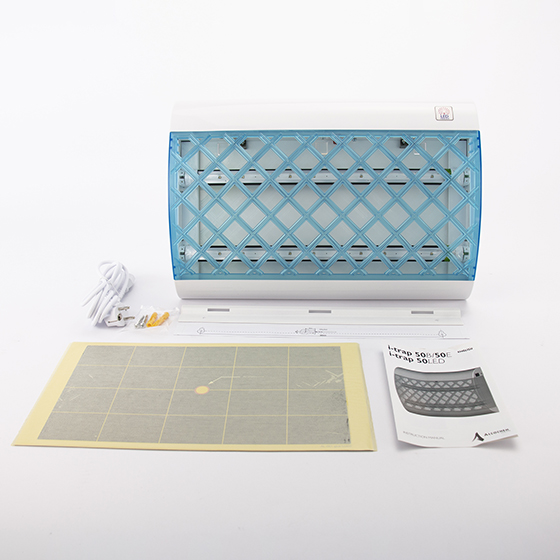

Package contents
1x | i-trap 50 LED unit |
2x | ASTRON 15 Watt LED lamp |
1x | Cord 1.80 m / 5,9 ft |
1x | Alcochem Hygiëne glueboard |
1x | Suspension strip |
2x | Screw with plug |
1x | Assembly tag |
1x | User Manual |
