Insect trap i-trap 50E – 80m² wall-mounted glueboard effective

Alcochem Hygiene
SKU: 2.05.0250

The i-trap 50 is an effective and proven design fly trap that brings great quality! The i-trap 50 meets the standards set within the HACCP Hygiene Code.

The i-trap 50 LED insect trap is recommended for use in shops, restaurants and dry industrial environments. With the mounting strip, this unit can be easily attached to the wall, making maintenance easy.

Estimated delivery time 1-3 working days

EAN: 8719075000533

 159,90 incl. Vat |  159,90 excl. Vat

3 in stock (can be backordered)

Compare

Description

Philips/Signify fluorescent UV-A lamps

Working closely with Philips, Alcochem Hygiene insect traps use a range of effective high-power UV-A lamps used for insect trap applications.

10 reasons to use the i-trap 50E fly lamp

  1. The unit can be used for wall mounting.
  2. The transparent grid offers a discreet and improved operation.
  3. glueboard is placed inconspicuously behind the lamp.
  4. The heart of this unit is the most powerful UV-A lamp available. This Philips Longlife UV-A lamp, exclusively developed for Alcochem, has an effective life span of 2 years. The light spectrum emitted by the Longlife lamp is precisely the light that flying insects can perceive.
  5. Effective range for rooms up to 80 m²
  6. Simple maintenance of lamp and glueboard.
  7. Complies with ISO 9001 / RoHS and CE standards. The unit meets HACCP standards.
  8. 30% better performance compared to conventional units. Due to the unique design of the grille, the flying insects have a better attraction to the sticky plate.
  9. The i-trap 50 is equipped with a high-frequency ballast, which has lower operating costs compared to a starter. The ballast has an HF light impulse so that the insect cannot distinguish the lamp from natural UV-A light.
  10. 2-year full warranty on mechanical parts.

An introduction to glueboard technology.

Glueboards are increasingly used in light traps to effectively trap insects.
These glueboards have an adhesive with very special properties, specially designed to grip and then hold very light objects. And this under very demanding conditions.
The insects should stick to the surface after applying a very light pressure. The common scientific name for this type of adhesive is “pressure sensitive adhesives" (PSA adhesives). The use of glueboards compared to light traps with a high voltage grid.
In recent years this high-voltage grid has come under increasing pressure, because it has a number of disadvantages. These differences between an glueboard and a high voltage grid are listed in the table below:
Edit
High voltage grid Glueboard
Reliable Yes Yes
Catching away small insect species Not possible (flies through the bars of the grid) No problem
Disease spread after killing off insect still possible Yes possible Not possible
Chance of greater insect infestation due to capture method Yes possible
(spiders, flies, wasps have access to the dead insects)
Not possible
Explosion of the insect possible Yes No
Spread of Insect Hair (Forms a major risk for people with lung disease) Yes (for that reason these are banned in hospitals in America) No
Monitoring and trend analysis Difficult Simple
Odorless No Yes
Sparking, crackling
(Fire hazard)
Yes No
Power costs per year 44-88kW No cost
Service friendly Chance of shock hazard
lots of cleaning
Yes simply replace glueboard

The i-trap 50 is an effective and proven design fly trap that brings great quality! The i-trap 50 meets the standards set within the HACCP Hygiene Code.

The i-trap 50 LED insect trap is recommended for use in shops, restaurants and dry industrial environments. With the mounting strip, this unit can be easily attached to the wall, making maintenance easy.

Data

Edit
Surface coverage 50 – 80 m² / 538 – 861 ft²
Light source 2 x 15 Watt Philips UV-A Longlife lamp
Type UV lamp UV-A lamps RoHS certified
Electrical supply 100-240 V ~ 50-60 Hz
Catch medium Effective glueboard
Power 32 W
Weight 4 Kg / 8.8 lbs
Protection class IP 20
Warranty 2 years “return to base"
Int. standardization acc. IEC 60.335-259 int. standard
Hygiene standards HACCP, AIB, BRC, EUREP GAP, GMP, IFS, M&S
Certificates CE / EMC / LVD / RoHS / REACH / ISO 9001 compliant
Lamp life 17,500 hours(*)
Dimensions (L x B x H) 470 x 100 x 325 mm / 18.5 x 3.9 x 12.7 inch
CE inspected Yes
Positioning Wall mount
Connection cable Includes
Maintenance No special tools required
*After 17,500 hours, the Longlife lamp still has 75% of its original UV-A output.

Package contents

Edit

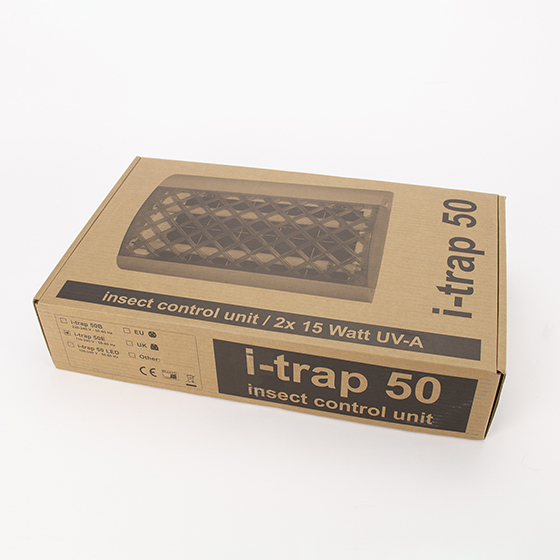

1x i-trap 50E unit
2x Philips Longlife 15 Watt UV-A lamp
1x Cord 1.80 m / 5,9 ft
1x Alcochem Hygiëne glueboard
1x Suspension strip
2x Screw with plug
1x Assembly tag
1x User Manual

If you have any questions about this product please contact our team and they will be happy to answer all your questions!

Are you looking for a spare part for your Alcochem Hygiene product, Firstelementsstore.com can supply many parts, after all, repair is better than replace. Send us a message and we’ll see what we can do for you.Read here our blog on why repairing is better!

To learn more about Alcochem Hygiene and the products they produce see the website here: www.Alcochemhygiene.com
