Insect trap OMNIVEO 2 LED – 100m² energy saving wall-mounted glueboard
The unit can be wall-mounted; centred mounting holes with a euro slot allow for easy maintenance and servicing. The OMNIVEO complies with the requirements of the HACCP Hygiene Code. Thanks to LED technology, this OMNIVEO insect trap is energy-friendly!
Estimated delivery time 1-3 working days
Description
LED lamps
LED technology offers demonstrable advantages in terms of efficiency (lower energy consumption) and visibility. An LED insect trap earns itself back over time in energy costs. Therefore it can be very interesting to invest in an insect trap with LED technology! Future upgrades for better LED lights are also possible!
If you want to know how much energy you can save use our calculation tool here (calculation tool will be updated in early 2023).
3 mounting positions for your own glueboard
The OMNIVEO offers 3 positions for placing an glueboard. Use your favorite glueboard. Choose a position by clicking on the holders of the position where you want to hold the plate.
Switching between LED and fluorescent lamps
Through the service panel, it is possible to switch an OMNIVEO in use between LED or fluorescent lamps. It’s possible to buy an OMNIVEO with LED lights now and have it work on fluorescent lights in the future, so an OMNIVEO is multi-applicable! All variants of the OMNIVEO have the service panel.
Smartcontrol for OMNIVEO
It is also possible to obtain a Smartcontrol module for the OMNIVEO which can be easily retrofitted. With a Smartcontrol module it is possible to monitor the insect trap in real-time via an application. Especially in an IPM approach, this can be a huge advantage!

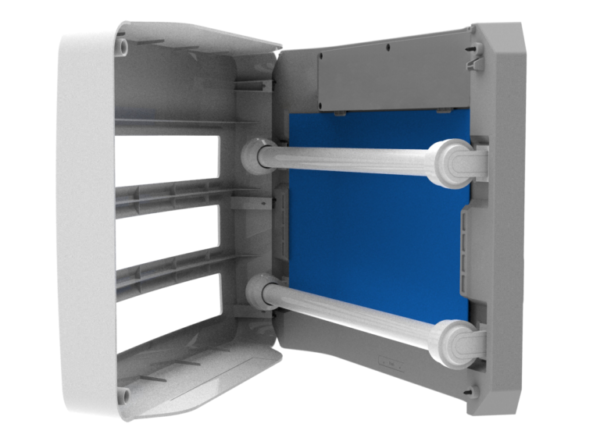

Hinged front side
A hinged front with a magnetic closing mechanism allows for easy and quick maintenance of the OMNIVEO!
ASTRON the new standard!
For some years now, there have been special LEDs on the market that have the ability to generate ultraviolet light; UV-A LEDs. These special LEDs are at the heart of a new generation of UV-A lamps: the ASTRON UV LED 15 Watt. The fact that the name of this new LED bulb mentions 15 Watts lies in the fact that this bulb replaces a traditional 15 Watt bulb, but only needs 11 Watts to deliver the same UV-A performance.
ASTRON is an emerging name in LED technology. Astron distinguishes itself by the low energy costs and the high light output of their lamps!
An introduction to glueboard technology.
| High voltage grid | Glueboard | |
| Reliable | Yes | Yes |
| Catching away small insect species | Not possible (flies through the bars of the grid) | No problem |
| Disease spread after killing off insect still possible | Yes possible | Not possible |
| Chance of greater insect infestation due to capture method | Yes possible (spiders, flies, wasps have access to the dead insects) |
Not possible |
| Explosion of the insect possible | Yes | No |
| Spread of Insect Hair (Forms a major risk for people with lung disease) | Yes (for that reason these are banned in hospitals in America) | No |
| Monitoring and trend analysis | Difficult | Simple |
| Odorless | No | Yes |
| Sparking, crackling (Fire hazard) |
Yes | No |
| Power costs per year | 44-88kW | No cost |
| Service friendly | Chance of shock hazard lots of cleaning |
Yes simply replace glueboard |
Bulbs and OMNIVEO version in video may differ from the product on offer
With its robust design, the OMNIVEO insect trap from Alcochem hygiene is recommended for use in professional or industrial environments.
The unit can be wall-mounted; centred mounting holes with a euro slot offer easy maintenance and service. The OMNIVEO meets the requirements of the HACCP Hygiene Code and thanks to its LED technology the OMNIVEO insect trap is energy friendly!
Data
| Electrical supply | 220-240V ~ 50-60 Hz |
| Surface coverage | 50 – 100 m² / 538 – 1076 ft² |
| Protection class | IP20 |
| Lamps | 2x ASTRON 15W UV-A LED lamps |
| Dimensions | 495 x 135 x 370 mm / 19.4 x 5.3 x 14.5 inch (L x W x H) |
| Glueboard | Effective scannable glueboard, multi-format plate placement |
| Power | 22 Watt |
| Int. standardization | in accordance with CE / EMC / LVD / RoHS / REACH / ISO 9001 |
| Hygiene standards | HACCP, AIB, BRC, EUREP GAP, GMP, IFS, M&S |
| Warranty | 2 years on mechanical and electrical performance |
| Ballast | Philips electronic ballast, 40k hours lifetime |
| Housing | ABS |
| Positioning | Wall mount |
| Lamp life | 25.000 hours (*) |
| (*) After 25,000 hours, a loss of 30% in efficiency can be expected and replacement of the lamps is necessary. |

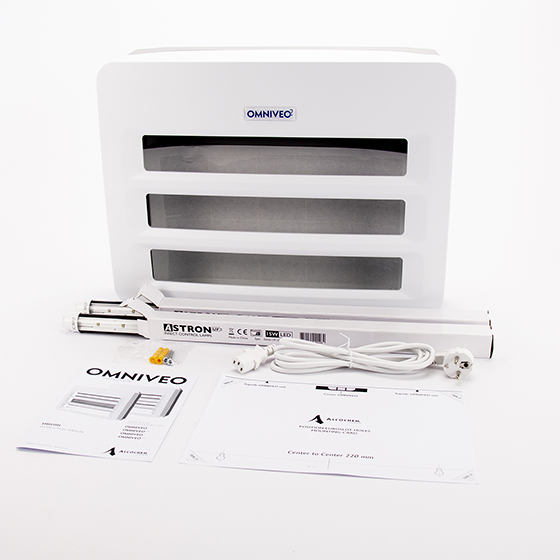

Package contents
| 1x | OMNIVEO unit IP20 |
| 2x | ASTRON 15W LED lamp |
| 1x | Alcochem hygiene glueboard |
| 1x | Cord 1.80 m / 5,9 feet EU plug (Optional UK or US) |
| 2x | Screw with plug |
| 1x | Assembly tag |
| 1x | User Manual |
If you have any questions about this product please contact our team and they will be happy to answer all your questions!
Are you looking for a spare part for your Alcochem Hygiene product, Firstelementsstore.com can supply many parts, after all, repair is better than replace. Send us a message and we’ll see what we can do for you.Read here our blog on why repairing is better!
To learn more about Alcochem Hygiene and the products they produce see the website here: www.Alcochemhygiene.com
| Weight | 5,2 kg |
|---|---|
| Dimensions | 54 × 16 × 40 cm |
| brand | Alcochem Hygiene |
