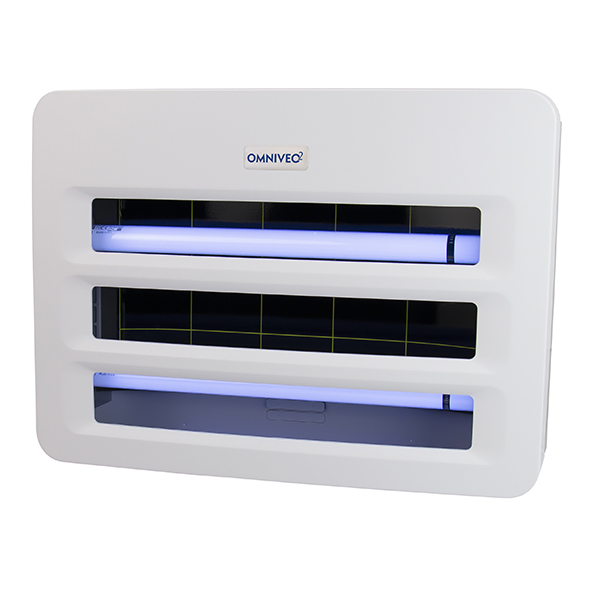

Insect trap OMNIVEO 2 – 100 m² wall-mounted Glueboard multi-purpose

Alcochem Hygiene
SKU: 2.05.4000

OMNIVEO series of Alcochem hygiene is the way to go when it comes to professional insect control! With its robust design, the OMNIVEO insect trap is recommended for use in professional or industrial environments.

An OMNIVEO is deployable from catering to factory and is the solution for pest control where professional results are desired!

The unit can be wall-mounted; centred mounting holes with a euro slot allow for easy maintenance and servicing. The OMNIVEO complies with the requirements of the HACCP Hygiene Code.

If you prefer an energy-friendly OMNIVEO? Click here and take a look at the LED version!

Estimated delivery time 1-3 working days

EAN: 8719075001677

 219,90 incl. Vat |  219,90 excl. Vat

3 in stock (can be backordered)

Compare

Description

Fluorescent lamps from ASTRON for OMNIVEO

Astron is the Greek word for “Bright Star", and that is exactly what these lamps offer. The Astron UV lamps offer reliable UV output.

3 mounting positions for your own adhesive plate

The OMNIVEO offers 3 positions for placing a glueboard. Use your favourite glueboard. Choose a position by clicking on the holders of the position where you want to hold the plate.

Switching between LED and fluorescent lamps

Through the service panel, it is possible to switch an OMNIVEO in use between LED or fluorescent lamps. It’s possible to buy an OMNIVEO with LED lights now and have it work on fluorescent lights in the future, so an OMNIVEO is multi-applicable! All variants of the OMNIVEO feature the service panel.

Smartcontrol voor OMNIVEO

It is also possible to obtain a Smartcontrol module for the OMNIVEO which can be easily retrofitted. With a Smartcontrol module it is possible to monitor the insect trap in real time via an application. Especially in an IPM approach, this can be a huge advantage!

Hinged front side

A hinged front with a magnetic closing mechanism allows for easy and quick maintenance of the OMNIVEO!

An introduction to glueboard technology.

Glueboards are increasingly used in light traps to effectively trap insects.
These glueboards have an adhesive with very special properties, specially designed to grip and then hold very light objects. And this under very demanding conditions.
The insects should stick to the surface after applying a very light pressure. The common scientific name for this type of adhesive is “pressure sensitive adhesives" (PSA adhesives). The use of glueboards compared to light traps with a high voltage grid.
In recent years this high-voltage grid has come under increasing pressure, because it has a number of disadvantages. These differences between a glueboard and a high voltage grid are listed in the table below:
Edit
High voltage grid Glueboard
Reliable Yes Yes
Catching away small insect species Not possible (flies through the bars of the grid) No problem
Disease spread after killing off insect still possible Yes possible Not possible
Chance of greater insect infestation due to capture method Yes possible
(spiders, flies, wasps have access to the dead insects)
Not possible
Explosion of the insect possible Yes No
Spread of Insect Hair (Forms a major risk for people with lung disease) Yes (for that reason these are banned in hospitals in America) No
Monitoring and trend analysis Difficult Simple
Odorless No Yes
Sparking, crackling
(Fire hazard)
Yes No
Power costs per year 44-88kW No cost
Service friendly Chance of shock hazard
lots of cleaning
Yes simply replace glueboard

Bulbs and OMNIVEO version in video may differ from the product on offer

OMNIVEO series of Alcochem hygiene is the way to go when it comes to professional insect control! With its robust design, the OMNIVEO insect trap is suitable for use in professional or industrial environments.

An OMNIVEO is deployable from catering to factory and is the solution for pest control where professional results are desired!

The unit can be wall-mounted; centred mounting holes with a euro slot offer easy maintenance and service. The OMNIVEO complies with the HACCP Hygiene Code.

Data

Edit
Electrical supply 220-240V ~ 50-60 Hz
Surface coverage 50 – 100 m² / 538 – 1076 ft²
Protection class IP20
Lamps 2x ASTRON 15W fluorescent lamps
Dimensions 495 x 135 x 370 mm / 19.4 x 5.3 x 14.5 inch (L x W x H)
Glueboard Effective scannable glueboard, multi-format plate placement
Power 30 Watts
Int. Standardization in accordance with CE / EMC / LVD / RoHS / REACH / ISO 9001
Hygiene standards HACCP, AIB, BRC, EUREP GAP, GMP, IFS, M&S
Warranty 2 years on mechanical and electrical performance
Ballast Philips electronic ballast, 40k hours lifetime
Housing ABS
Positioning Wall mount
Lamp life 8.000 hours
(*) After 8,000 hours, a 30% loss in efficiency can be expected and replacement of the lamps is necessary.

Package contents

Edit
1x OMNIVEO unit IP20
2x ASTRON 15W lamp
1x Alcochem hygiene glueboard
1x Cord 1.80 m / 5,9 feet
EU plug (Optioneel UK or US)
2x Screw with plug
1x Assembly tag
1x User Manual
