UV-A intensity meter
The meter is designed to provide a price-competitive, easy-to-use tool for checking the efficiency of UV-A lamps. As we all know, there is still little or no awareness of the fact that UV-A light deteriorates over time and, as a result, lamps are not replaced or are replaced too late.
As a result, a fly trap will work less well, if at all.
Or requirements made of, for example, a UV-A inspection lamp are no longer met.

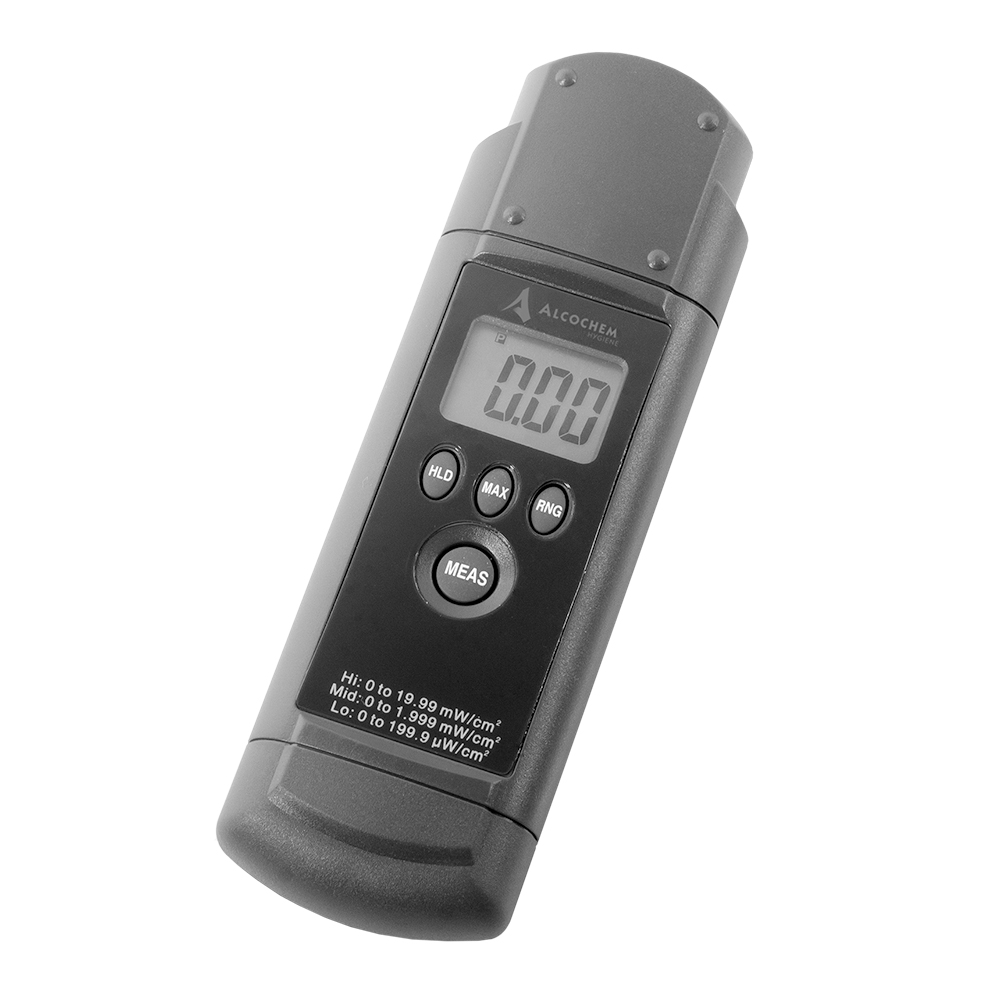

The UV-A intensity meter is equipped with an easy-to-read 3.5 inch (LCD) display. Weighing ± 100 grams (including batteries), the meter is very handy for daily use.
The spectrum of the UV sensor has a range between 320 – 400 nm, taking measurements 2.5 times per second. All meters are supplied with a factory calibration and are ready to use immediately. The UV-A meter is equipped with 3 x 1.5V (AAA) batteries and has a battery life of ± 200 hours.
The meter is suitable for both fluorescent UV-A lamps and LED UV-A lamps.
The UV-A intensity meter has the possibility to measure within 3 selection areas:
High: 0 to 19.99 µW/cm²
Medium: 0 to 1.999 µW/cm²
Low: 0 to 199.9 µW/cm²
Please note: We recommend that a UV-A light source be switched on for a few moments prior to an intensity test in order to obtain the maximum values. Always wear the prescribed safety glasses during the measurement as well.
UV meter data
|Dimensions||(L x B x H)155 x 48 x 24 mm / 6.10 x 1.88 x 0.94 inch|
|Weight||82 gram / 2.8 oz excluding batteries|
|Display||3,5 inch LCD|
|Measure frequency||2,5 times per second|
|Battery||3x 1,5V (AAA)|
|Battery duration||± 200 operating hours|
|Measure range||High 0 to 19.99 µW/cm² / Medium 0 tot 1.999 µW/cm² / Low: 0 to 199.9 µW/cm²|
|Accuration||Max 4%of the maximum scale|
|UV sensor spectrum||320 – 400 nm|
|Wavelength peak||365 +/- 5 nm|
|Operational use environment||0 ºC to 50 ºC / 32 °F tot 122 °F at 75% relative humidity|
|Optimal operating environment||23 ºC +/- 5 ºC / 73 °F +/- 41 °F at 75% relative humidity|
|Storage environment||-20 ºC to 60 ºC / 4 °F at 140 °F 0 at 80% relative humidity|
|Package Contents||1x UV meter – 3x AAA battery – 1x manual|
If you have any questions about this product please contact our team and they will be happy to answer all your questions!
