Starterset PDL II POWERLIGHT Series UV-A torch
Geschatte levertijd 2-3 werkdagen (EU)
International transport costs can be find overhere
Description
Version and type in video or images may differ from product offered, please refer to details for offer / This video only shows the PDL-II, not the total starter package.

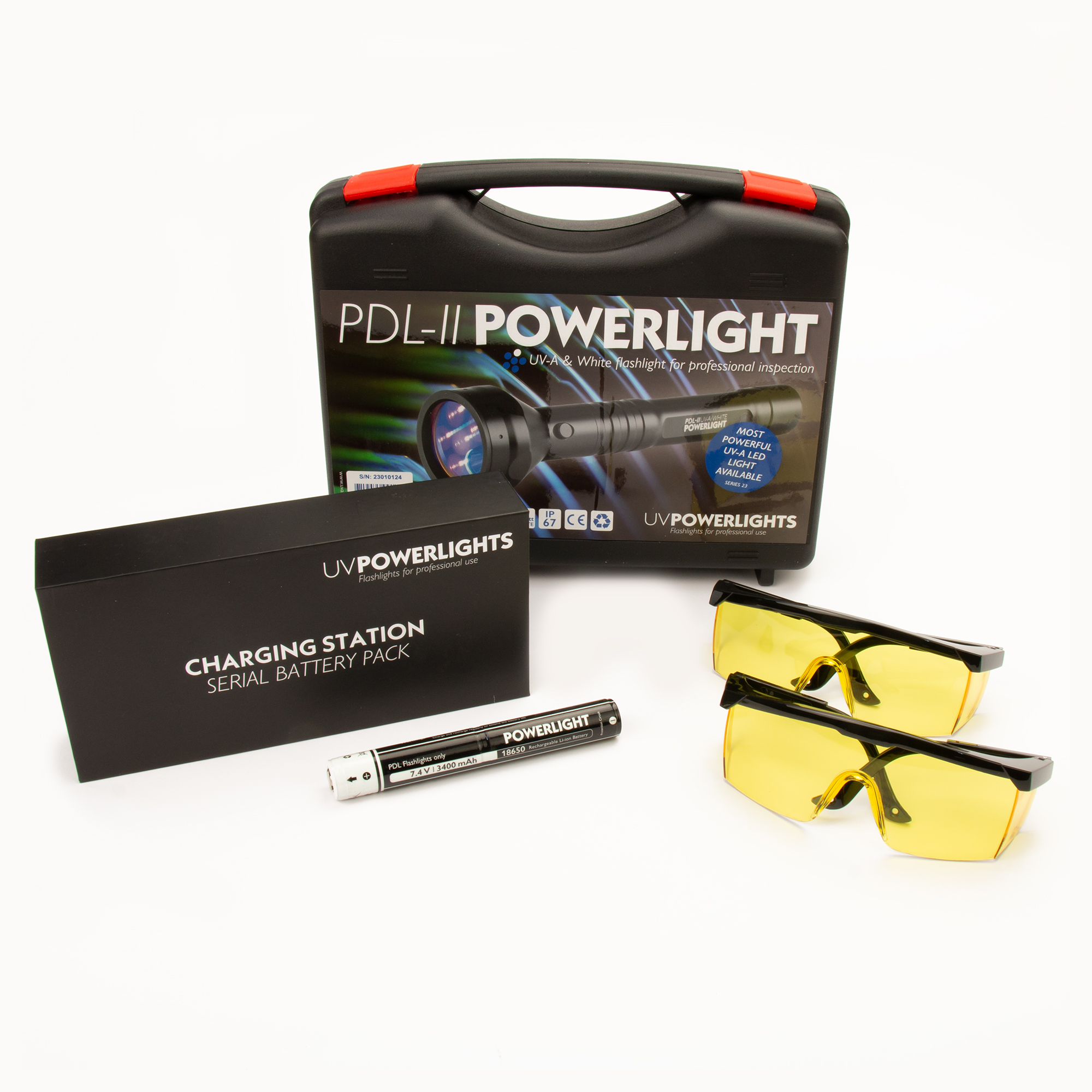

Contents starter set:

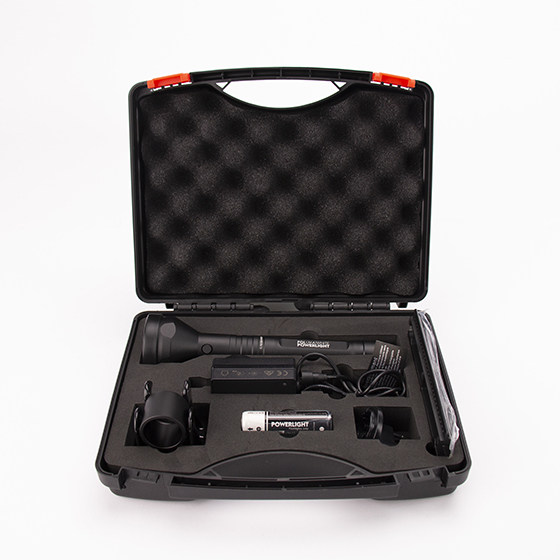

| PDL-II POWERLIGHT box: | |
| 1x | PDL II POWERLIGHT UV-A inspection lamp |

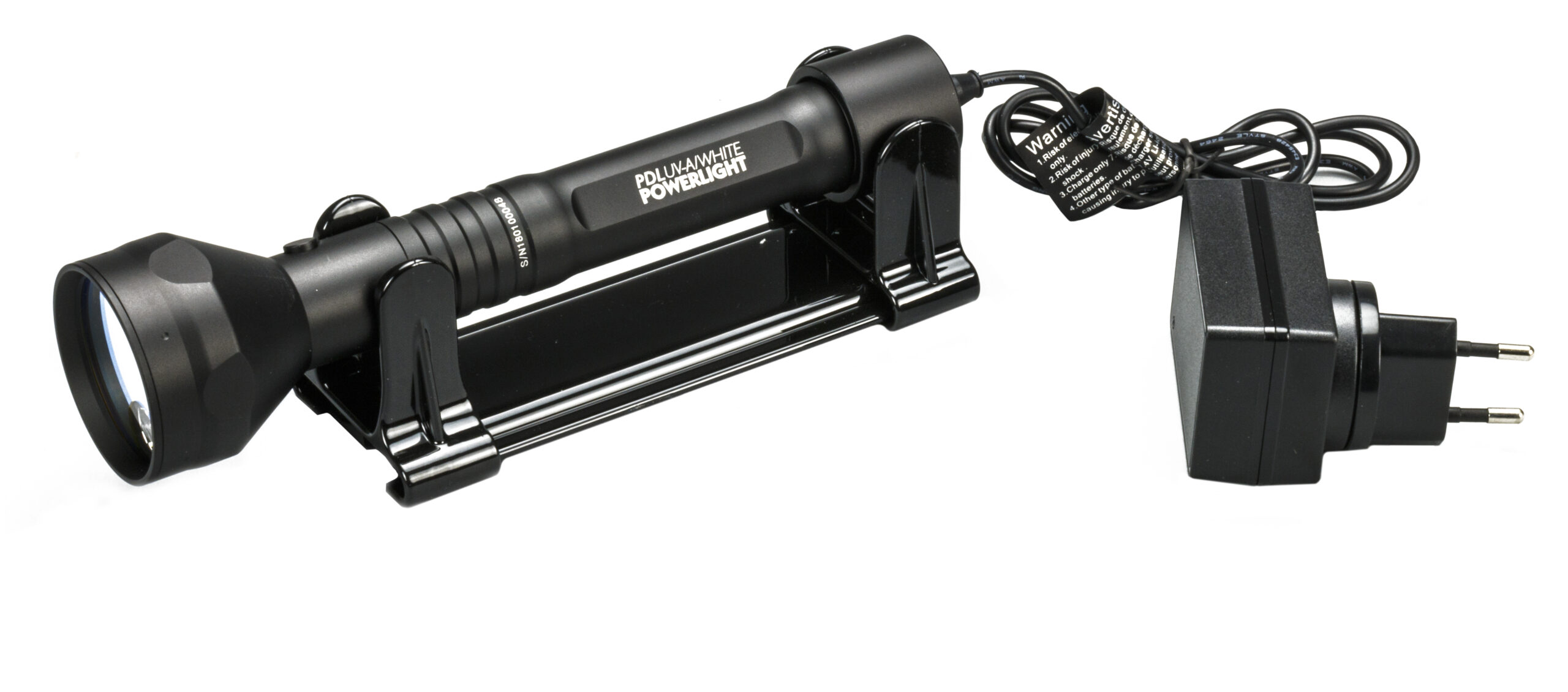

| 1 x | PDL tabseholder for loading the PDL |
| 2x | POWERLIGHT battery (18650) |
| 1x | Interchangeable adapter PDL > Plug type A, C, G, (EU / UK / US) |
| 1x | Manual PDL |
| PDL Tableholder box: | |
| 1x | Tableholder with adjustable angle and height |
| 1x | Table clamp (for attachment to a workbench) |
| 1x | Manual |
| 4x | Screws for montage |
| 1x | HEX key |
| 2x | Protection labels voor work table |
| PDL Accessoires box: | |
| 1x | PowerCharger 4 battery loader (4 batteries) |
| 2x | UV-A protection glasses - Yellow |
| 2x | etui to protect glasses |
| 2x | Spare batteries 18650 |
| 1x | Endcap |
| 1x | Protection bumper (extra protection for PDL lamp) |

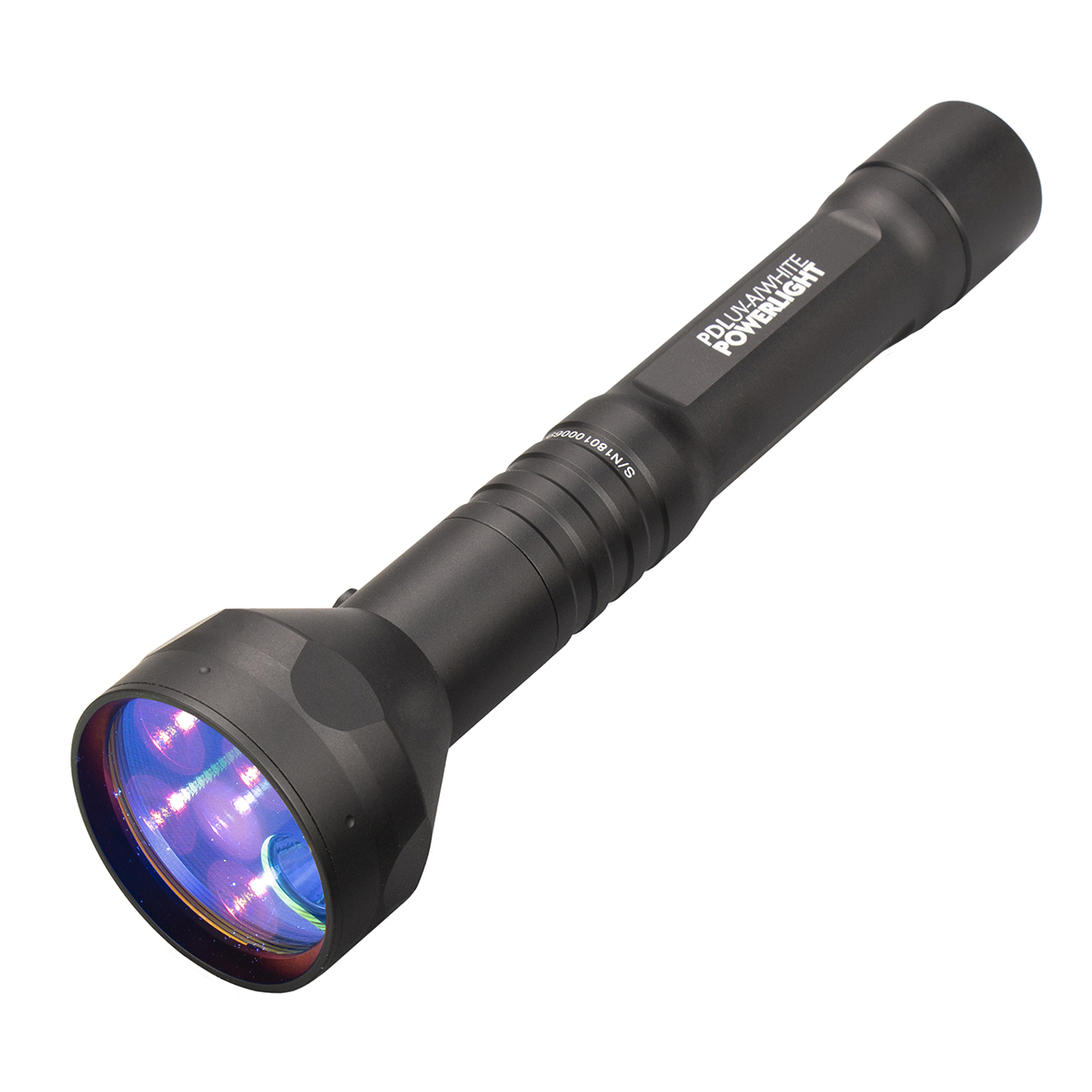

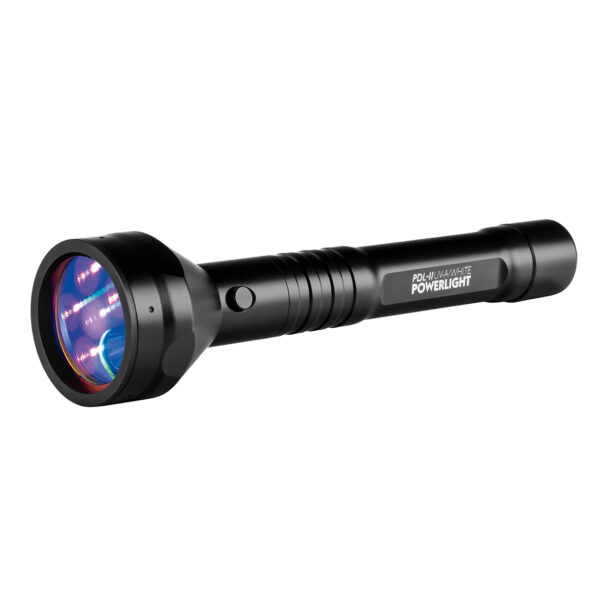

The most powerful UV-A and white light torch
The PDL-II POWERLIGHT Series 23 is currently the strongest, most powerful true UV-A and white light flashlight
available on the world market: 25 watt UV-A LED and 5 watt white LED power at your fingertips!
A special dichroic filter is placed in front of the UV-A LEDs, which blocks all other wavelengths.
Only ultraviolet light (UV-A 365nm) passes through this filter. The PDL II was developed jointly with the leading semiconductor tech giant of Europe
The PDL-II is the improved variant of the PDL the PDL-II is better protected against overheating, therefore the lamp can be used longer consecutively!
Inspection height versus UV intensity (mW/cm²)
| Inspectie hoogte | UV intensiteit (mW/cm²) |
| 35 cm / 13,7 inch | 8,3 mW/cm² |
| 30 cm / 11,8 inch | 10,5 mW/cm² |
| 25 cm / 9,8 inch | 13,1 mW/cm² |
| 20 cm / 7,8 inch | 16,5 mW/cm² |
| 15 cm / 5,9 inch | 24,9 mW/cm² |
| 10 cm / 3,9 inch | 41,2 mW/cm² |
Where can the PDL II POWERLIGHT be used?
- Pharmaceutical and cosmetic market: Detection of particles and hygiene
- Cleaning industry: Hygiene inspection of rooms, hygiene inspection of textiles and bedding
- Metallurgy: checking welds
- Laboratories: detection of chemical residues and particles
- Food inspection: Detection of mycotoxins in seeds, nuts, (dried) fruits, vegetables and cereals It should be noted that it is not only foods that can be carriers of mycotoxin-producing moulds. Buildings and equipment can also be a source of contamination (Aspergillus, Penicillium, Fusarium, Alternaria, Alternariakunnen,).
- Oil and gas industry: Inspection of pipelines
- Security professionals: Authenticating stamps, banknotes, credit cards, telephone cards, diplomas, official documents (also for collectors of stamps and banknotes)
- Medical world: Hygiene inspection of areas such as operating theatres
- Fire brigade: traces of arson
- Pest controllers: Detection of rodents (whether or not in combination with feeding blocks for rodents, carried out with a UV tracker and bedbugs.
- Geology: Exploring rocks, minerals and fossils
- Woodslamp: Skin diseases and ringworm (tinea) detection
- Police detective: Investigating and tracing blood traces and body fluids, tracing smartWater
- Police / Mobile unit / Military police: For the detection of SmartWater, SelectaDNA and other signature sprays, tagging sprays
- Hunting: Blood, sweat, tracks
- mechanic/installer: Detection of air conditioning and other leaks (with fluoridating liquid)
- Art restoration: Restoration and research of (old) paintings, papers, books and ceramics (also an indication of the age of printing paper can be given).
- UV lacquer drying: For quick drying of UV car paint, clear coat, primer, filler, resin and glue (also for nail polish)
- Ceramic industry: Detecting hairline cracks in ceramics
- Clear coat validation: Clear coat validation on printed circuit boards to ensure uniform coverage
- Hydrocarbons: Detection of hydrocarbon contamination (oil or grease) in an oxygen vessel or connecting pipework
- Quality control of citrus fruit: Detection of rotting or damaged fruits
- Post-check ultrasonic cleaning: Determining whether your object has been sufficiently ultrasonic cleaned
- Glass industry: detecting (hair) cracks in glass and (car) windows
- Bruising: UV light is used in domestic violence or child abuse investigations to make ‘old’ injuries visible.
- Hand hygiene training: Learn the best hand washing techniques in combination with UV lotion / soap
- Preventive crop care for vineyards and orchards: After spraying, inspect density and coverage via added fluorescent dye
- Egg inspection: traces of washing or wiping on traces
- Riboflavin wash cycle validation: Validating the wash sequence of containment isolators used for dosing toxic/active products
- SmartWater detection: checking that SmartWater, SelectaDNA has been correctly applied or detecting objects with this paint
- Detection of particles before coating: Checking that parts are dust-free before spraying/lacquering

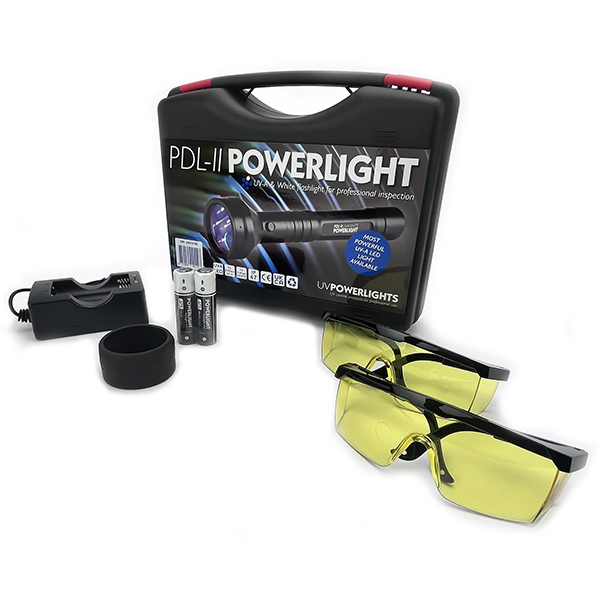

UV inspection starterset
This set has been carefully put together to provide a complete starter kit for anyone beginning with UV inspections.
Safety during inspections has been taken into consideration. The UV safety glasses help protect the user, while the PDL protective bumper provides additional protection for both the inspection lamp and the product being inspected.
With an extra battery and charger, you can make optimal use of your inspection lamp throughout the day and always have a charged battery available.
With this complete starter set, you have everything you need to start performing UV inspections safely and fully prepared.
UV-A LED- technology
UV-A LEDs have only been on the market for a few years and are still relatively expensive.
As UV-A light is not visible to the human eye, the user can, without a measuring device,
not determine whether the torch actually emits the desired UV-A light.
Many manufacturers use this fact to use inferior – but cheap – blue LEDs in their torches that emit little to no UV-A light.
Instead, these torches emit the visible colours violet and blue.
The result is that the object that is supposed to light up under the influence of UV-A light is not visible to the human eye. As a result, there is less confidence in the technology.
The PDL II was co-developed with Europe’s leading tech giant.
The UV torches produced by Alcochem are equipped with the strongest UV-A LEDs available on the market.
Lots off UV-A light!
The main task of our UV flashlights is to actually emit ultraviolet light at a brightness that allows the user to perform their tasks even in bright daylight. By ultraviolet light we of course mean REAL UV-A light. UV-flashlights have been on the market for a long time, but often the wrong wavelength was emitted and/or the light was just not strong enough to detect problems.
Data PDL-II
| LED Type | 1 x 5 Watt white and 5 x 5 Watt UV-A light |
| White light | Yes |
| UV-A light | Yes |
| UV-A wavelength | 365 nm |
| White light | 300 lumens |
| Emission of visible blue or violet light | No |
| LED lifetime | 20.000 hours |
| Housing | Aluminium T6061, Premium Type III hard anodised finish |
| Light modes | 4 positions |
| Anti-rol design | Yes |
| Night reflector | No |
| Weight | 313 Grams (inc battery) /11,01 oz |
| Dimensions | 222 x 52 mm / 8,7 x 2,0 inch |
| IP class | IP67 |
| Droptest | Yes 1,2 m / 3,9 ft |
| Batterij type | 2x 18650 Li-Ion battery 3.7 V 3400 mAh |
| Brand Battery | Panasonic |
| Operating time | UV-A 50 min Wit 2 hours |
| Warranty | 2 years (on electrical components) |
| Color | Black |
| Lifetime | Min 5 years |
| Electrical specifications | 100-240V ~50-60 Hz |
| Certificates | IEC report (IEC 60598-2-8) included, |
| ASML | ASML certified for grade 2 and grade 4 applications GSA 07 9410 and GSA 07 9510 |
| Standard | CE / ISO 9001 / IEC 60598-2 / RoHs compliant |
Data POWERLIGHT 3,7 V battery (2x) (18650)
| Model | Rechargeable Lithium-ion |
| Type | 18650 Duo cell battery |
| Power | 3400 mAh |
| Rated voltage | 3.7V |
| Dimensions | 130,5 x 17 mm / 4,46 x 0,66 inch |
| Weight | 94 gr / 3.3 oz |
| Short circuit protection yes | Yes |
| Optimized power supply scheme | Yes |
| Quality Class | A |
| Recharge | 1000 x |
| Directives | CE / RoHs |
| Max. Charging capacity | 3250 mAh |
| Droptest | No |
| Storage temperature | -10 ◦C - +35 ◦C / 14°F - 95°F |
| Pack quantity | Packed by piece |
| Self-discharge | Enhanced low self-discharge |
| Manufacturer | Alcochem Hygiene & Panasonic |
Data Powercharger4 battery loader
| Input | QC 3.0 (9V-2A) |
| Output | 3A x1 / 2A x2 / 1A x4 / 0.5A x4 |
| Measurements | 180 mm x 130 mm x 40 mm |
| Weight | 300 g (zonder batterijen) |
| Compatibel with | 3.6 / 3.7V - Li-ion / IMR / INR / ICR - 18650, 21700 1.2V - Ni-MH / Ni-CD - AAA / AA |
| content package | Oplader, kabel, handleiding |
Data yellow UV protection glasses
| Function | UV-protection |
| UV-protection | 280 nm - 410 (UV-A) |
| UV400 protection | Yes |
| Frame/glass | Injection-moulded polycarbonate |
| AMeasurements | 130 mm*1 x 50 mm*2 x 30 mm*3 |
| Color | Yellow |
| Flexibility | The arms of the glasses are extendable (approx. 15 mm), allowing the safety glasses to be worn over regular prescription glasses. |
| Scratch-resistant | Yes |
| Certificates | CE EN166-norm and ANSI Z87.1-norm |
| 1 (width – front of lens) 2 (lens height) 3 (width – side of lens) |

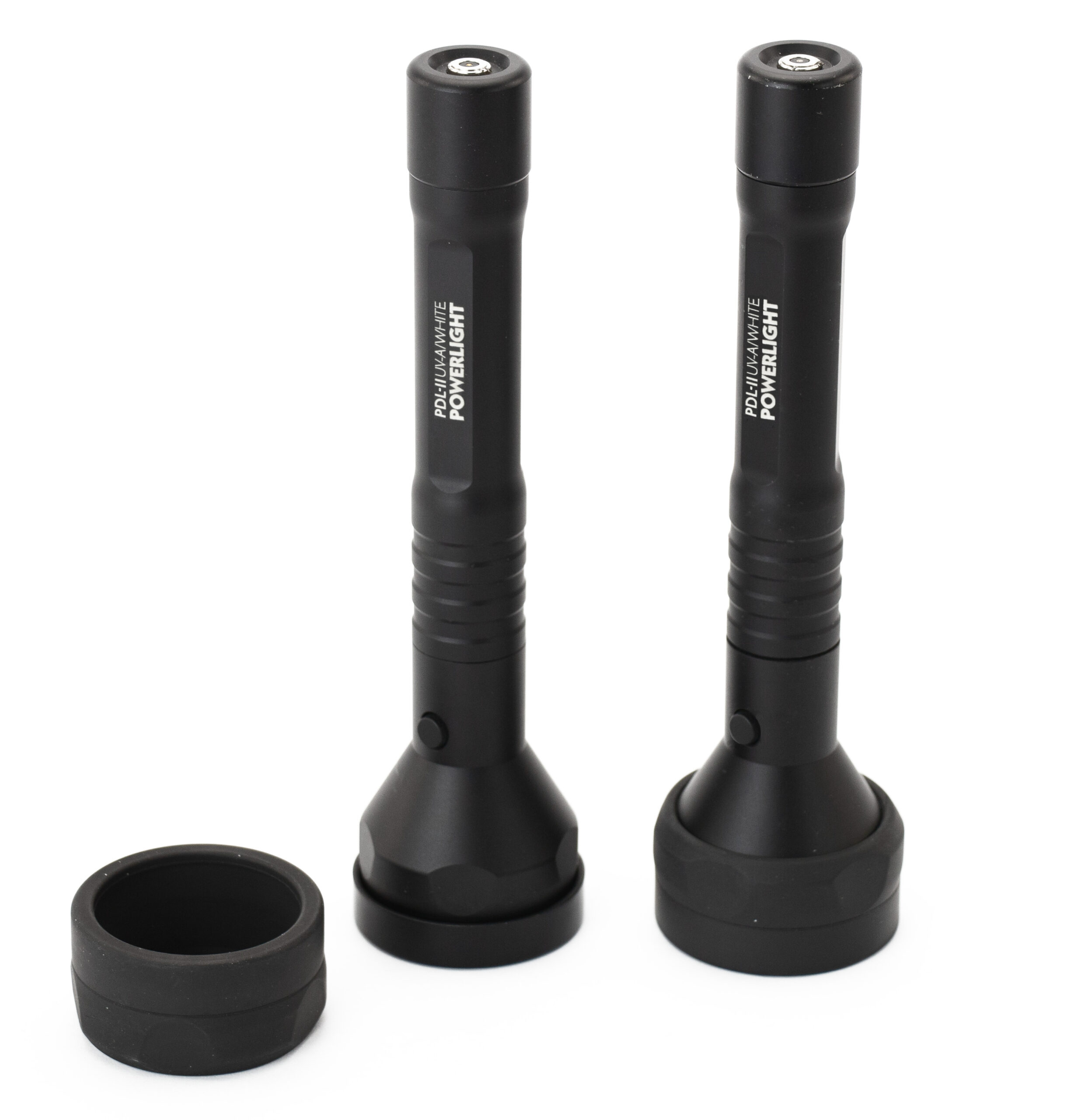

Data PDL protection Bumper
| Tickness of material | 5 mm |
| Material | Viton KFM |
| Drop tested | Yes 1,2 meter |
| Designed for | PDL 1.0 / PDL-II series 21 / PDL-II series 23 / PDL-II series 25 |
| Anti-roll design | Yes |
| Suitable for use in cleanrooms | Yes |
| Content package | 1 x Bumper |
